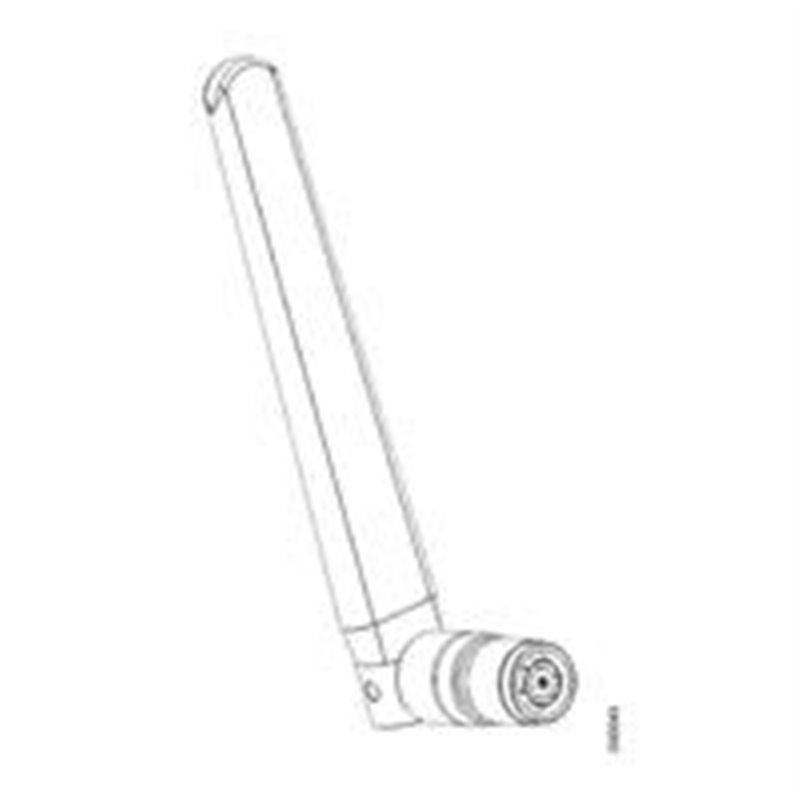

2.4 GHZ 2 DBI/5 GHZ 4 DBI DIPOLE ANT., WHITE, RP-TNC

ESPECIFICACIONES:

THE ANTENNA HAS AN ARTICULATED BASE THAT CAN BE ROTATED 360 DEGREES AT THE CONNECTION POINT AND FROM 0 TO 90 DEGREES AT ITS JOINT. THE AIR-ANT2524DW-RS ANTENNA INCLUDES CIRCUITRY TO ENABLE SELF IDENTIFICATION OF THE ANTENNA BY THE CISCO CATALYST 91XX SERIES ACCESS POINTS. THE SELF IDENTIFYING FUNCTION IS INDICATED BY A PURPLE BAND ON THE ANTENNA. ENSURE THIS ANTENNA IS CONNECTED TO PORT A ON THE AP, WHICH IS ALSO DESIGNATED BY PURPLE TEXT AROUND THE RP-TNC CONNECTOR. THIS ANTENNA HAS A BUILT-IN EEPROM THAT CAN BE READ BY THE AP TO AUTOMATICALLY CONFIGURE THE ANTENNA TYPE AND GAIN IN THE WIRELESS LAN CONTROLLER.

FICHA COMERCIAL:

THIS ANTENNA IS DESIGNED FOR USE WITH CISCO AIRONET ACCESS POINTS THAT SUPPORT SIMULTANEOUS OPERATION IN THE 2.4 GHZ BAND AND THE 5 GHZ BAND AND THAT HAVE DUAL-BAND ANTENNA PORTS, LABELED IN ORANGE TEXT. THE SELF IDENTIFYING ANTENNA MODEL AIR-ANT2524DW-RS= IS SUPPORTED ONLY ON CISCO CATALYST 9800 SERIES WIRELESS CONTROLLERS RUNNING AN IOS-XE 17.4.1 RELEASE OR A LATER RELEASE. THIS ANTENNA MODEL IS NOT SUPPORTED ON CISCO AIREOS WIRELESS CONTROLLERS.
